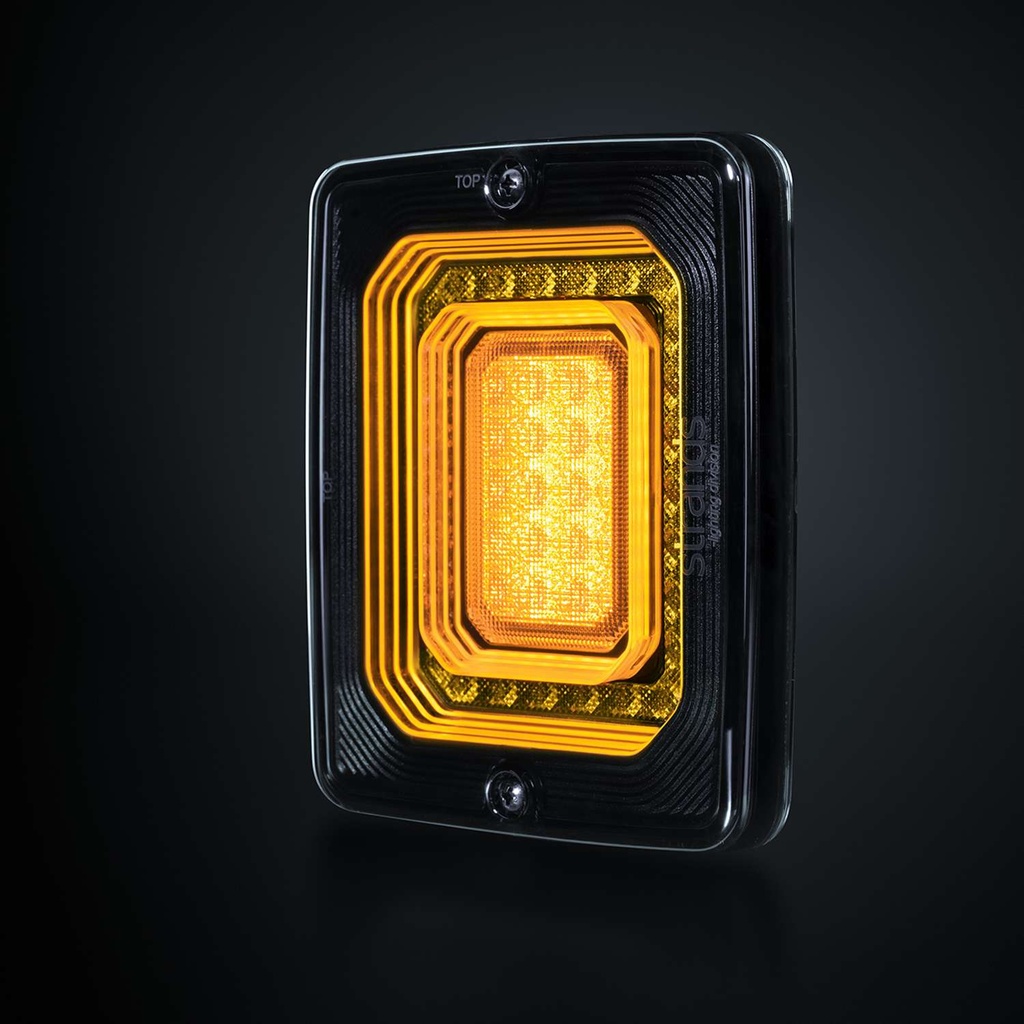

FOR9T ILLUSION Indicator Light
Indicator Light
10-40V | 6W | IP67

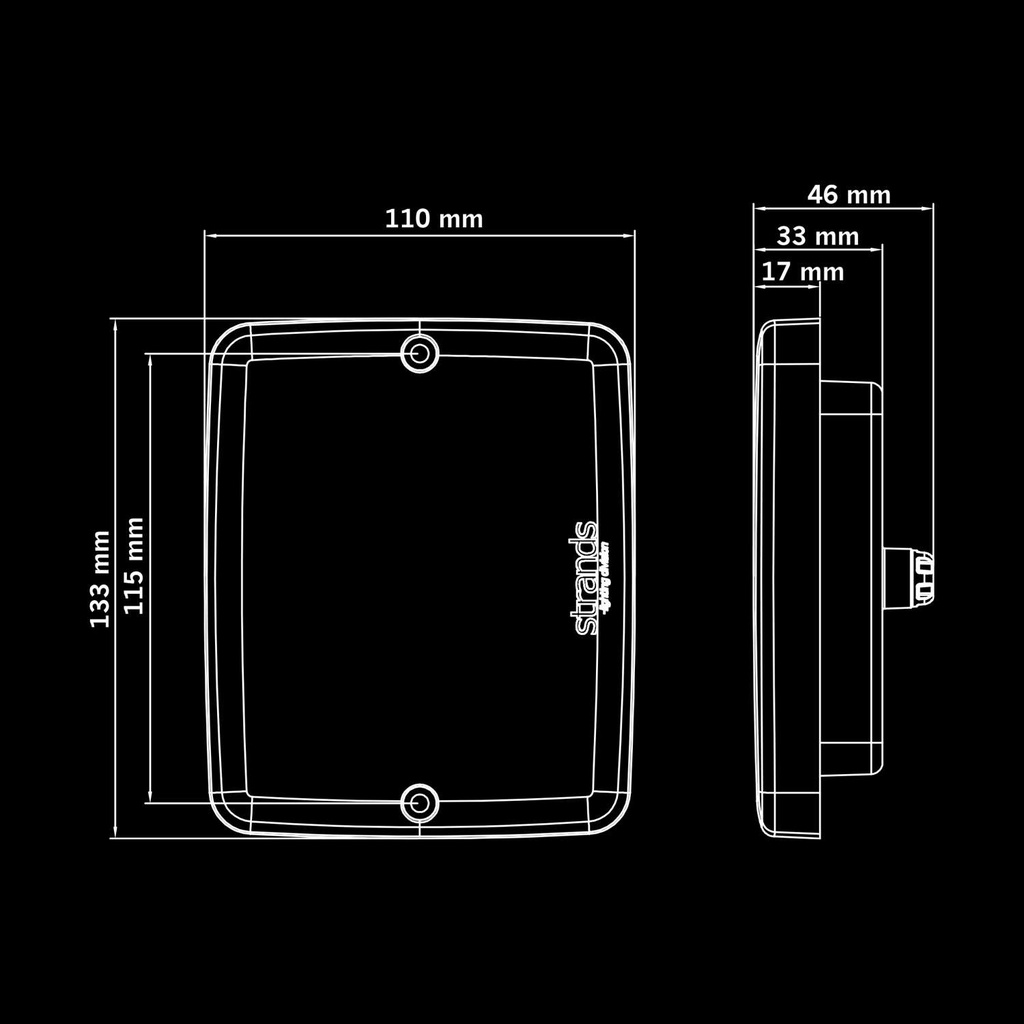

Dimensions: L110 x H133 x D46mm
E-approved ECE R148 EMC ECE R10
250cm Cable
Beschreibung:

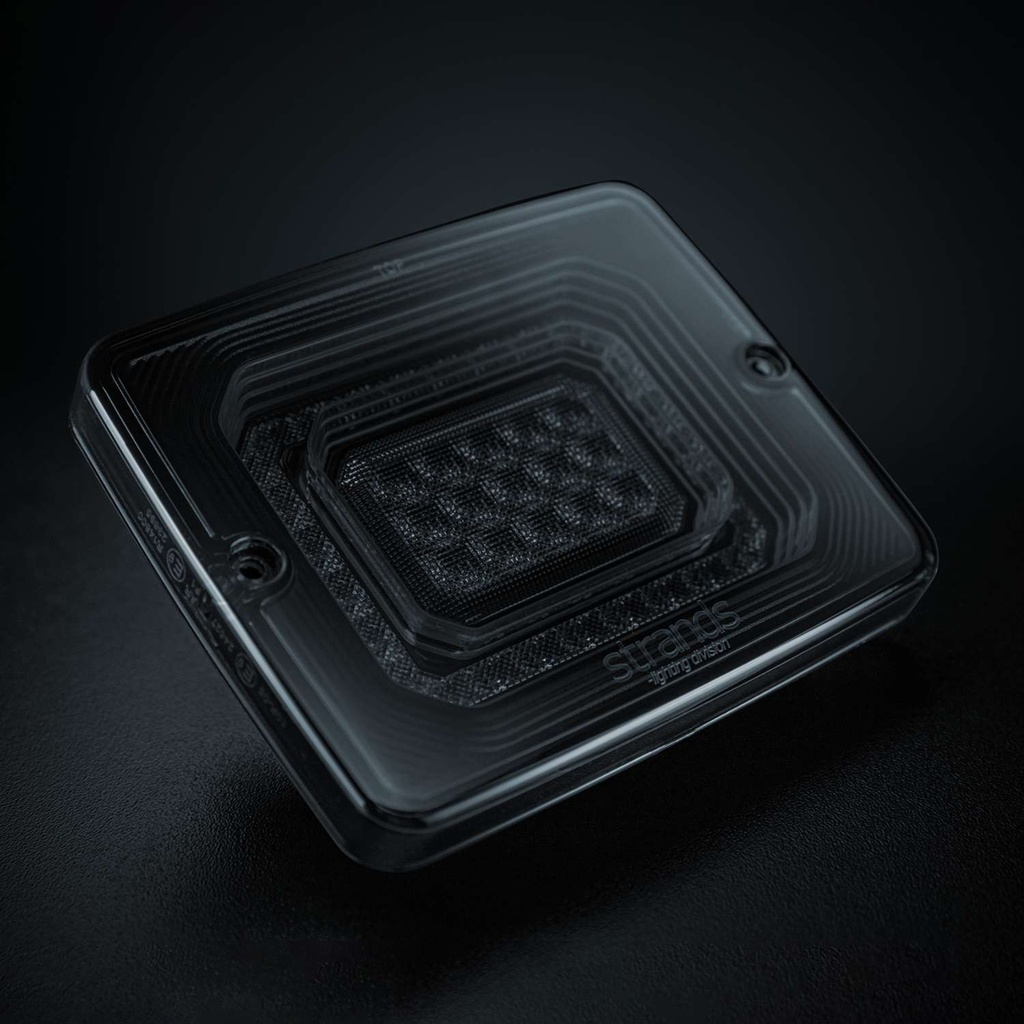

The FOR9T Illusion indicator light perfectly combines the style of the unique and eye-catching FOR9T position lights with maximum functionality. This signature light provides an undeniable and hypnotic look, enhanced by the dark lens. Thanks to the 115 mm CC and square shape, it fits all IZE LED frames (Part No. 800635-40) and rubber housings (Part No. 800112-13). This makes installation easy, and upgrading your old lights is simple. It’s constructed from durable materials, ensuring a long-lasting and resilient product. It’s backed by Strands’ 3-year warranty as an additional assurance of its durability. The Illusion features a dark lens and is E-approved R148 for both vertical and horizontal installation. It’s available in four variants: tail/brake/indicator, reverse/fog, tail/brake, and indicator. Screws, nuts, and nylon washers are included in the package.
- Voltage 10-40V DC
- Theoretical effect 10W
- Consumption 6W
- Functions Indicator
- Connection Cable
- Cable length 2500mm
- Color housing Black
- Color lens Dark
- Color LED´s Amber
- Material housing/chassi Polycarbonate
- Material lens Polycarbonate
- Length 133mm
- Depth 46mm
- Height 110mm
- CC 115mm
- Weight 0,37kg
- IP-class IP67
- Operating temperature -30 - +65°C
- E-approved Yes
- According to regulation ECE R148
- EMC ECE R10
