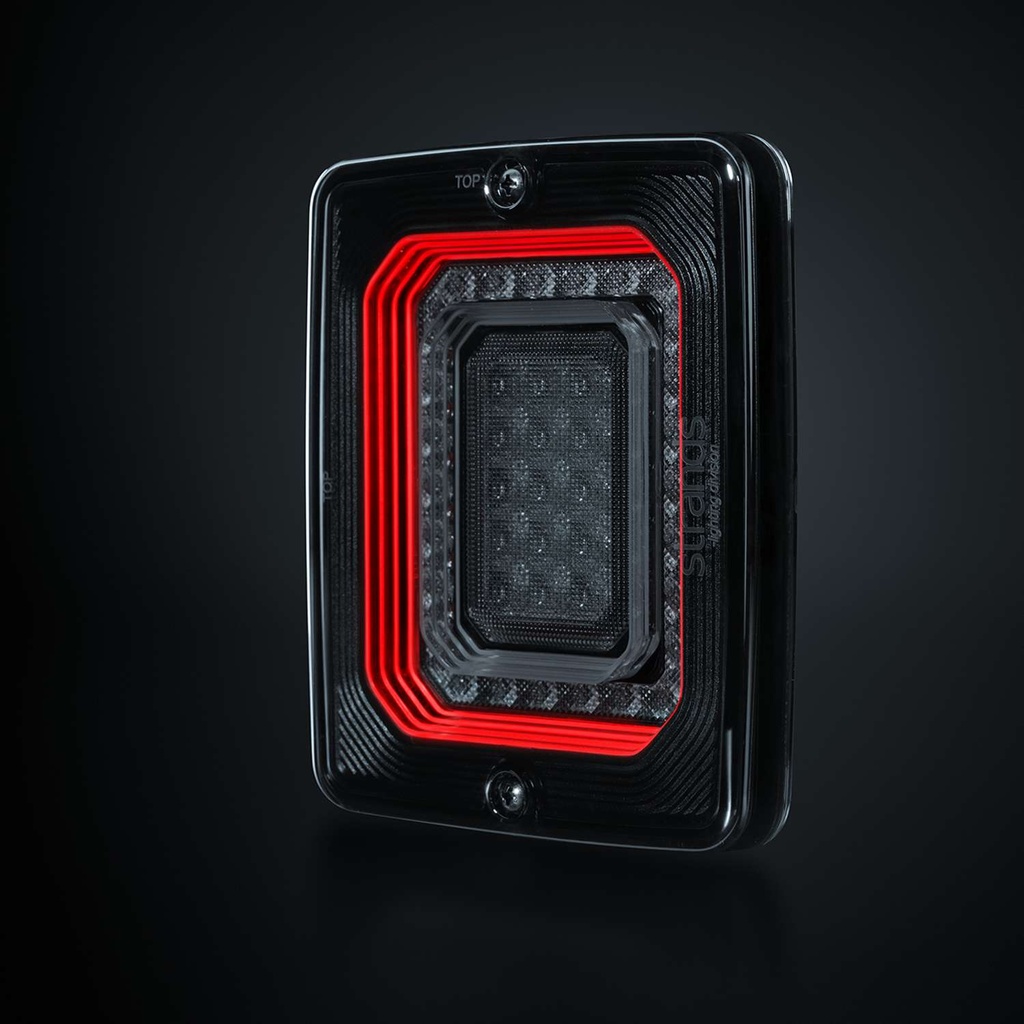

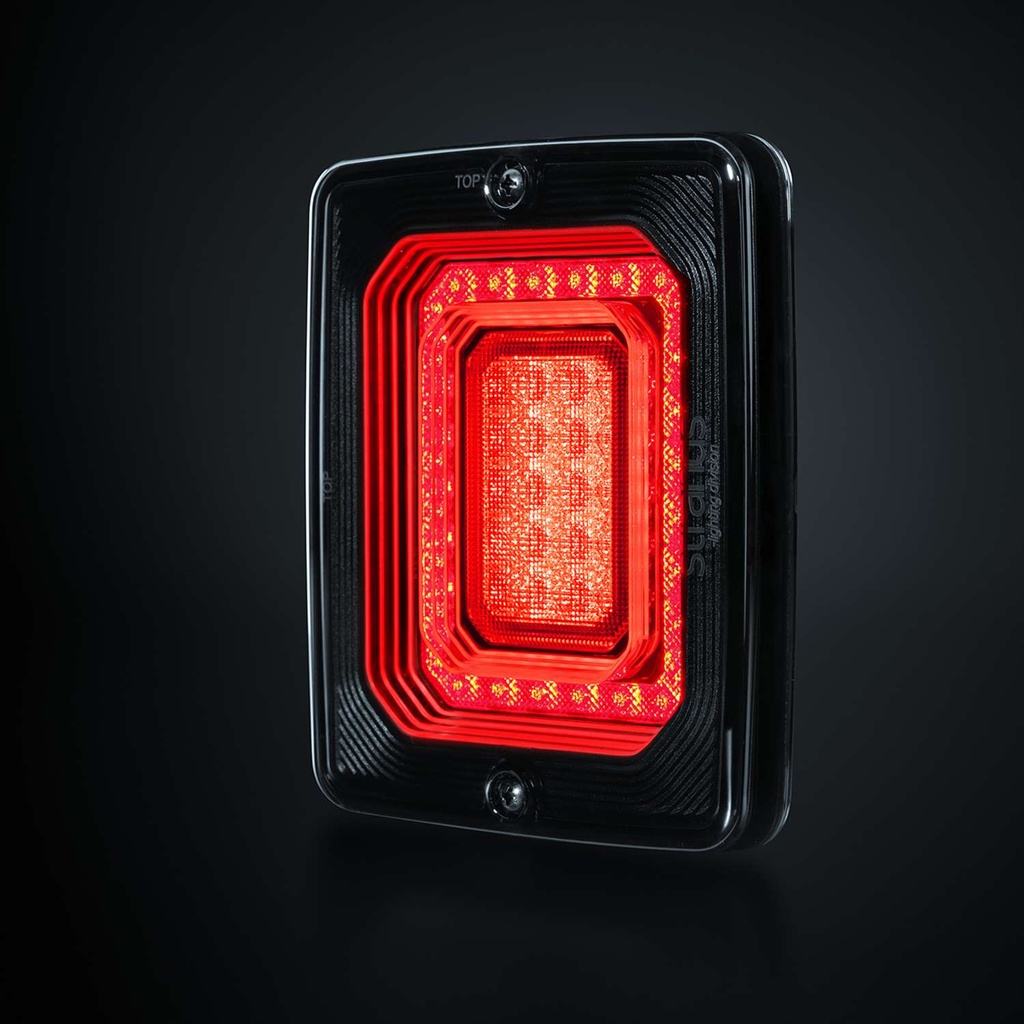

FOR9T ILLUSION Tail/Brake Light

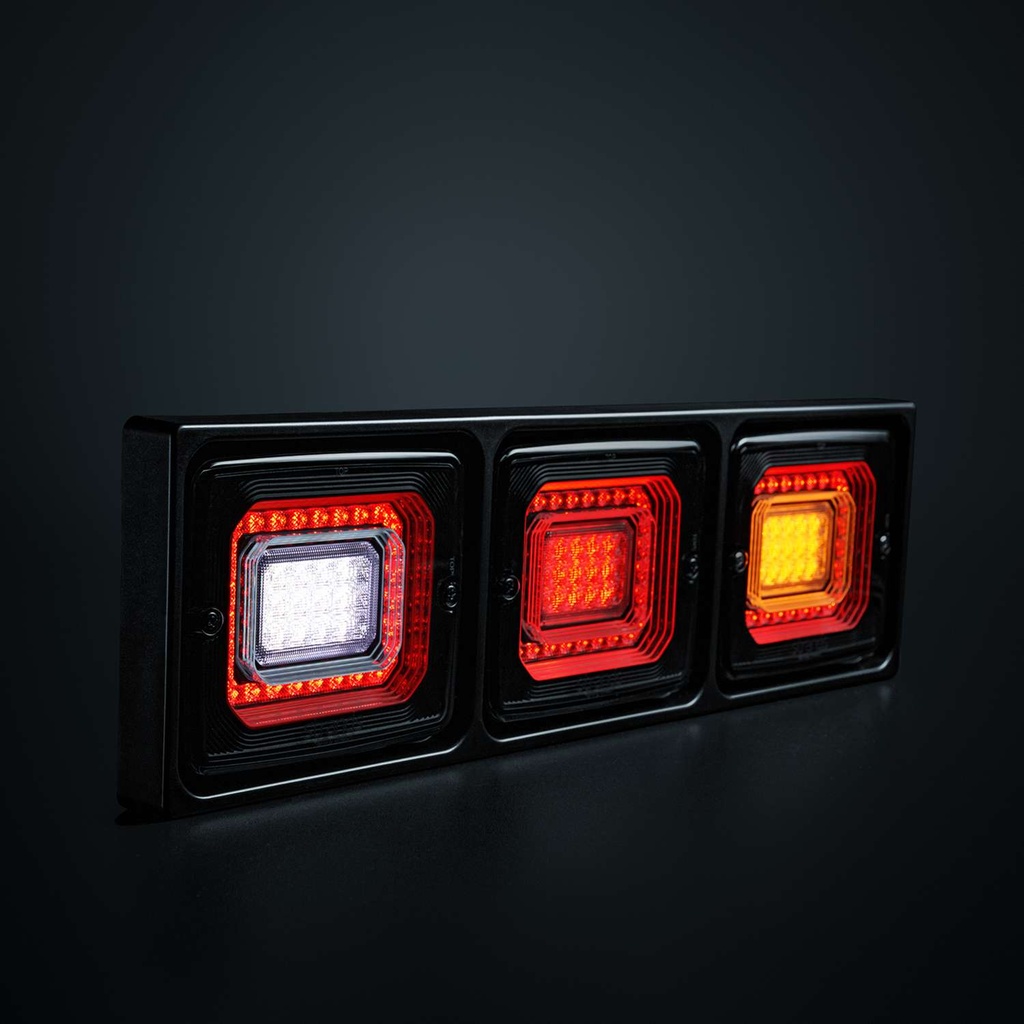

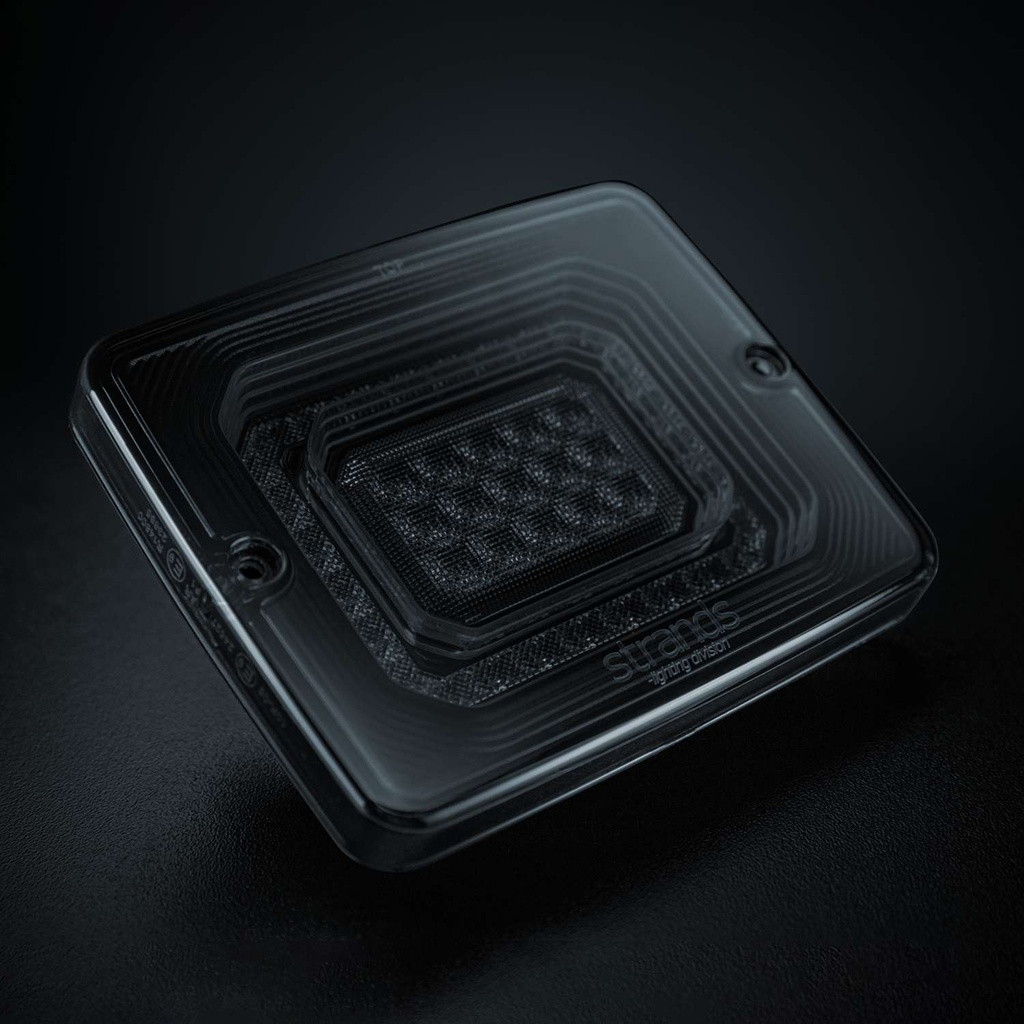

The FOR9T Illusion tail light perfectly combines the style of the unique and eye-catching FOR9T position lights with maximum functionality. It includes a tail light and brake light. These signature lights provide an undeniable and hypnotic look, enhanced by the dark lens. Thanks to the 115 mm CC and square shape, it fits all IZE LED frames (Part No. 800635-40) and rubber housings (Part No. 800112-13). This makes installation easy, and upgrading your old lights is simple. It’s constructed from durable materials, ensuring a long-lasting and resilient product. As an additional assurance of its durability, it’s backed by Strands’ 3-year warranty. The Illusion features a dark lens and is E-approved R148 for both vertical and horizontal installation. It’s available in four options: tail/brake/indicator, reverse/fog, tail/brake, and indicator. Screws, nuts, and nylon washers are included in the package.

• Voltage 10-40V DC
• Theoretical effect 15W
• Consumption 8,5W
• Functions Tail, Brake
• Consumption specific function TAIL:4W, BRAKE:4,5W
• Connection Cable
• Cable length 2500mm
• Color housing Black
• Color lens Dark
• Color LED´s Red
• Material housing/chassi Polycarbonate
• Material lens Polycarbonate

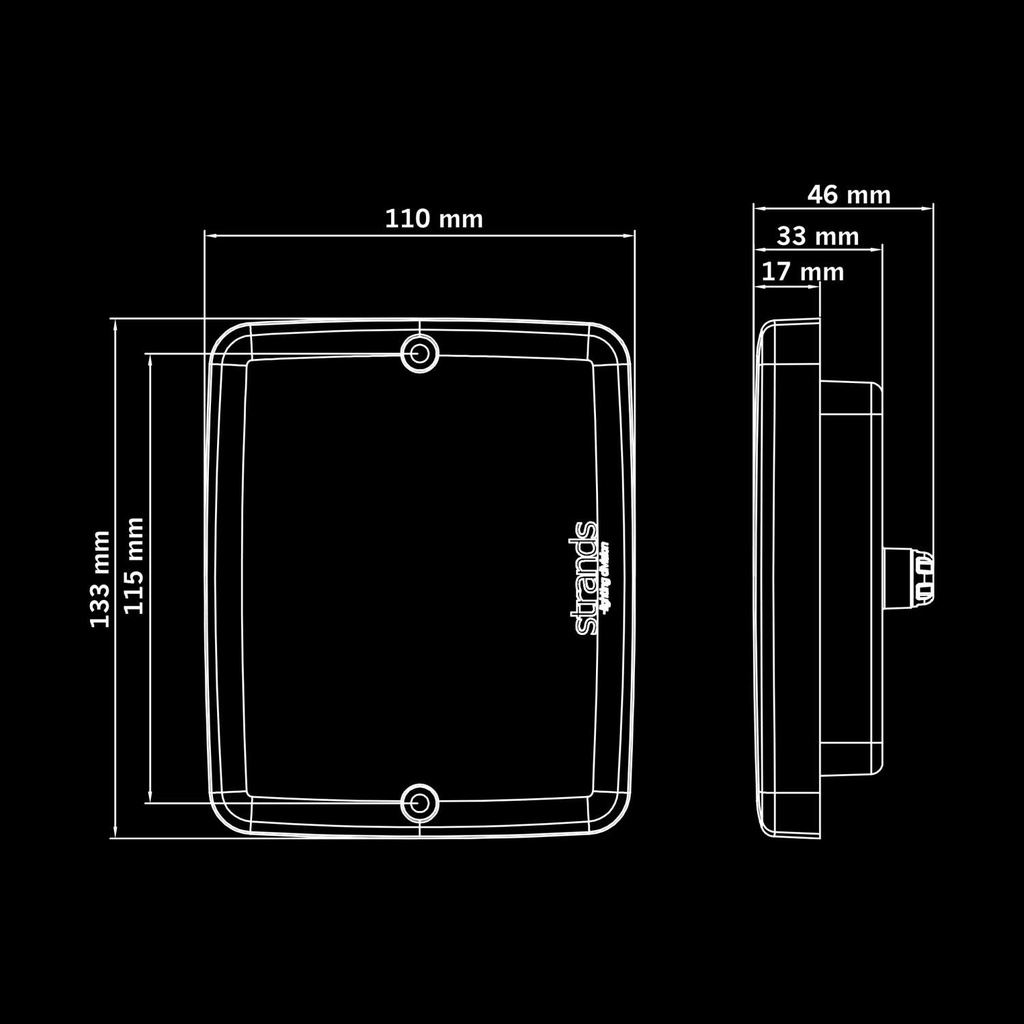

• Length 133mm
• Depth 46mm
• Height 110mm
• CC 115mm
• Weight 0,37kg
• IP-class IP67
• Operating temperature -30 - +65°C
• E-approved Yes
• According to regulation ECE R148
• EMC ECE R10
