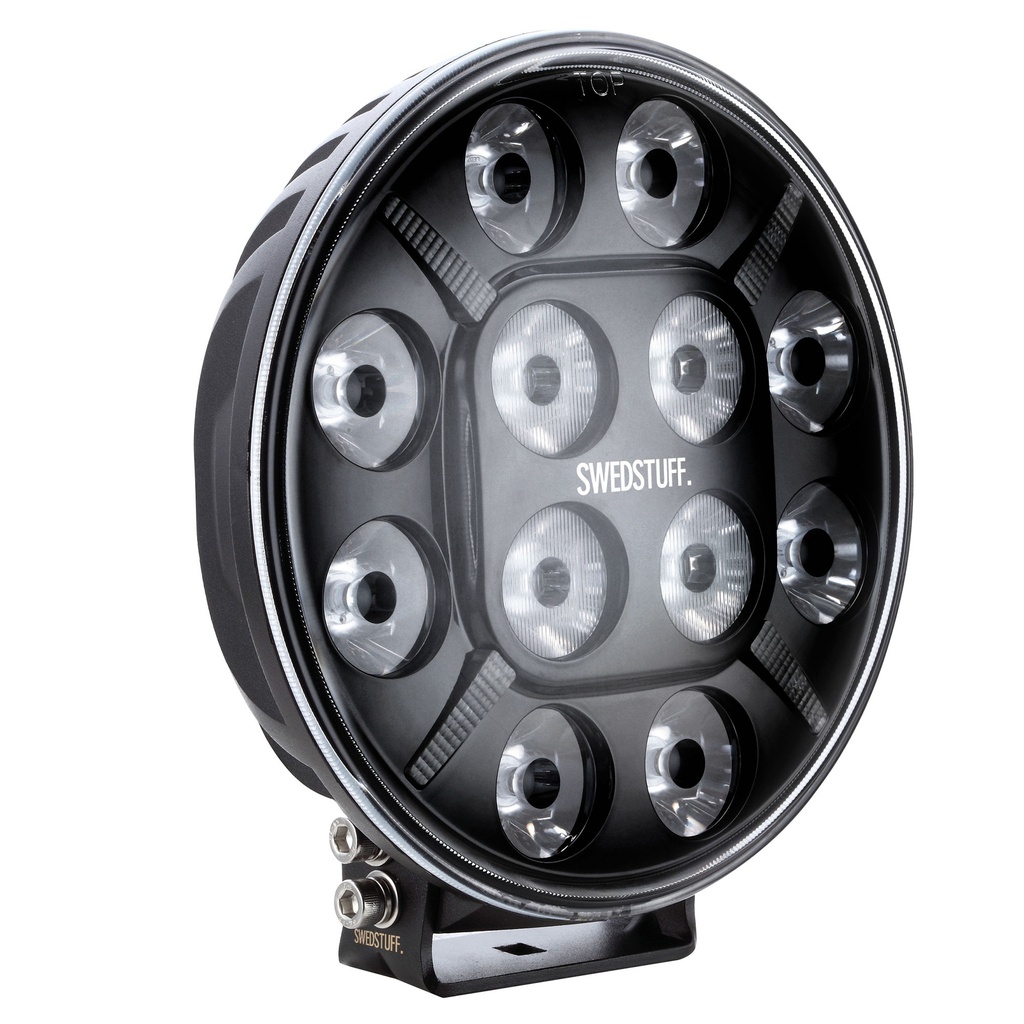

Swedstuff Driving Light 9" 115W

Experience a new level with the new LDL-04. The slim 9″ LED driving light for those who want to move away from the traditional look. LDL-04 is modern, efficient and durable. Comes with a duo position light – where you choose the colour between white and orange.
The placement of the four position lights forms an eye-catching pattern that creates character and enhances the overall impression of your vehicle. The lamp gives you a very efficient light on the road, 1 LUX at 650 metres. Moreover, it gives you a softer and more pleasant lighting experience with a new light colour temperature of 5000 Kelvin.
The light mimics and enhances the car’s original headlights. An extended combination of length and width, perfect for a varied driving experience. The LDL-04’s TIR (total inner reflection) reflectors contribute to efficiency far more than traditional reflectors. Light is reflected, packaged and directed before being emitted. So – no unnecessary waste of useful light.
On the back of the lamp are heat sinks that effectively cool the lamp when needed. By carefully drilling a hole through the heat sinks, they can also be used to mount stabilisation bars.

• • Voltage: 10-36V DC
  • Theoretical effect: 120W
  • Consumption: 115,0W
  • Consumption specific function: Xperience mode: 115W / E-mode: 46W / White position light: 1,2W / Yellow position light: 1,2W
  • Theoretical lumen: 13000lm
  • Actual lumenE-mode: 4600lm / Xperience mode: 9600lm
  • 1 lux @E-mode: 435m / Xperience mode: 650m
  • Color temperature: 5000K
  • Beam pattern: Extended beam
  • Beam angle: 23,9°
  • Connection: DT-4PIN
  • Cable length: 500mm
  • Color housing: Black
  • Color lens: Clear
  • Material bracket: Stainless steel
  • Material housing/chassi: Aluminum Alloy Die Castings(ADC12)
  • Material lens: Polycarbonate
  • Depth: 70mm
  • Height including bracket: 233,5mm
  • Diameter: 218mm
  • Weight: 1,82kg
  • IP-class: IP68/69K
  • Operating temperature: -40 - +62°C
  • E-approved: Yes
  • According to regulation: ECE R7, R112
  • Reference number: 37,5
  • EMC: ECE R10
